Product Details:
|
| Capacity: | 10,20,50,100,200,500kg | Non-linearity: | ≤0.2%F.S. |
|---|---|---|---|
| Repeatability: | ≤0.2%F.S. | Material: | Alloy Steel |
| Application: | Limited Room Force Measurement | Product Name: | Ring Force Sensor For Limited Room Force Measurement |
| High Light: | 500kg Ring Force Sensor,50kg Ring Force Sensor,0.2% ring force transducer |
||

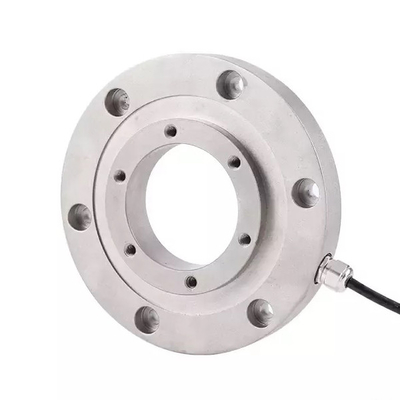

Diameter 120mm 10-500kg Limited Room Force Measurement Applied Ring Force Sensor
1. Descriptions
Diameter 120mm 10-500kg Limited Room Force Measurement Applied Ring Force Sensor FA128A belongs to FA128 which is in our brand FIBOS FA1-Series. FA128A can be used to measure force 1kg,2kg,5kg,10kg,20kg and 50kg or customized capacity, its Creep(30min),Non-linearity,Hysteresis and Repeatability are same with FA128 but also can be customized.
2. Specifications
| Product name | Ring Force Sensor for Limited Room Force Measurement |
| Capacity | 1,2,5,10,20,50kg or customized |
| Rated output | 1.0±10%mV/V |
| Zero Balance | ±1%mV/V |
| Creep(30min) | ≤0.1%F.S. or customized |
| Non-linearity | ≤0.2%F.S. or customized |
| Hysteresis | ≤0.3%F.S. or customized |
| Repeatability | ≤0.2%F.S. or customized |
| Input impedance | 780±20Ω |
| Output impedance | 700±10Ω |
| Temp.effect on output | 0.05%F.S./10 ℃ |
| Temp.effect on zero | 0.05%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~12V |
| Maximum excitation | 15V |
| Compensated Temp Range | -10~60 C |
| Operating Temp Range | -20~80 C |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | ⌀4x3000mm or customized |
| Weight | 0.4kg or customized |
| Material | Alloy steel or customized |
3. Dimension
4. Application
Diameter 120mm 10-500kg Limited Room Force Measurement Applied Ring Force Sensor FA128A could be used for force detection of robot hand gripping force.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
