Product Details:
|
| Product Name: | Miniature Force Sensor | Capacity: | 5,10,20,50kg |
|---|---|---|---|
| Rated Output: | 1.5±15%mV/V | Non-linearity: | ≤0.5%F.S. |
| Repeatability: | ≤0.2%F.S. | Material: | Stainless Steel |
| High Light: | 50kg miniature compression load cell,0.5% miniature compression load cell,stainless steel 50kg load cell |
||

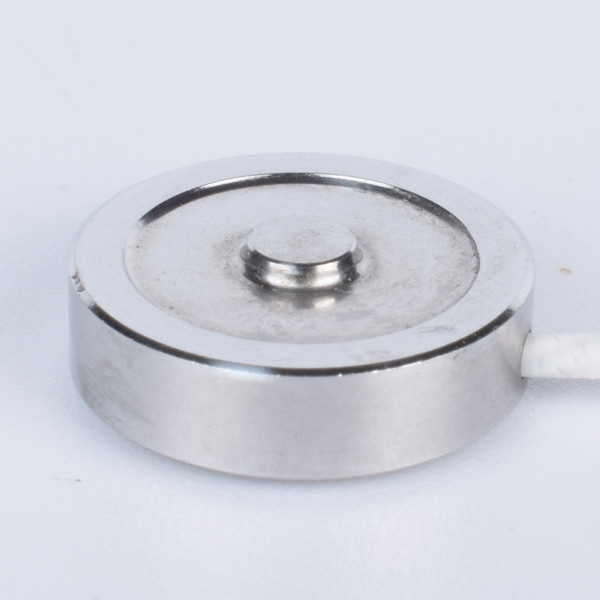

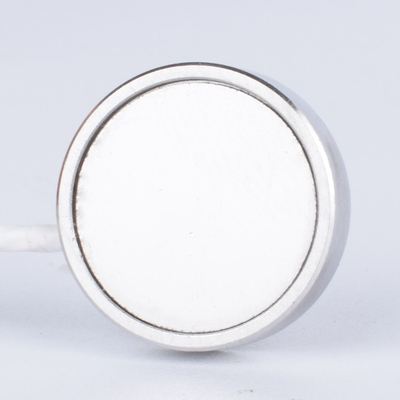

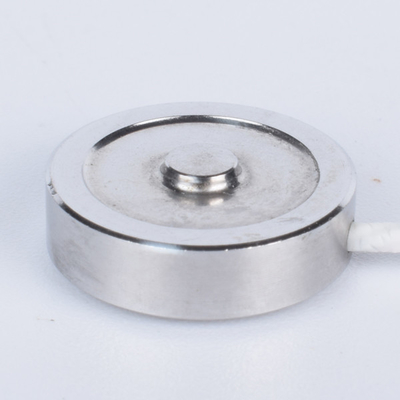

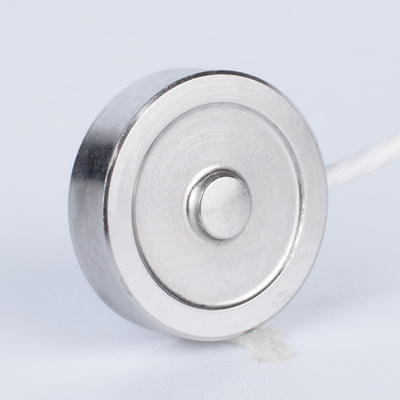

5-50kg Stainless Steel Miniature Force Sensor
1. Descriptions
5-50kg Stainless Steel Miniature Force Sensor FA103 is a model of our brand FIBOS FA1-Series, Miniature Force Sensor FA103 can be used to measure force 5kg,10kg,20kg and 50kg capacity, its Cable size is ⌀1.2x3000mm, its Weight is 0.1kg, and its Material is Stainless steel, its Creep(30min) and Non-linearity both ≤0.5%F.S..
2. Specifications
| Product name | Miniature Force Sensor |
| Capacity | 5,10,20,50kg |
| Rated output | 1.5±15%mV/V |
| Zero balance | ±0.05mV/V |
| Creep(30min) | ≤0.5%F.S. |
| Non-linearity | ≤0.5%F.S. |
| Hysteresis | ≤0.5%F.S. |
| Repeatability | ≤0.2%F.S. |
| Input resistance | 800~1100Ω |
| Output resistance | 800~1100Ω |
| Temp.effect on output | 0.05%F.S./10 C |
| Temp.effect on zero | 0.05%F.S./10 C |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~10V |
| Maximum excitation | 15V |
| Compensated temp range | -10~60 ℃ |
| Operating temp range | -20~80 ℃ |
| Safe load limit | 150%F.S. |
| Breaking load | 200%F.S. |
| Cable size | ⌀1.2x3000mm |
| Weight | 0.1kg |
| Material | Stainless steel |
3. Dimension
4. Application
5-50kg Stainless Steel Miniature Force Sensor FA103 can be used in grain scales.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
