Product Details:
|
| Product Name: | S Beam Load Cell | Capacity: | 25,50,100,200,250,500kg / 0.75,1,1.5,2,2.5,5,10t |
|---|---|---|---|
| Rated Output: | 2.0/3.0±1%mV/V | Non-linearity: | ≤0.03%F.S. |
| Repeatability: | ≤0.03%F.S. | Material: | Alloy Steel |
| High Light: | 25kg s shaped load cell,500kg s shaped load cell,alloy steel 10 ton load cell |
||

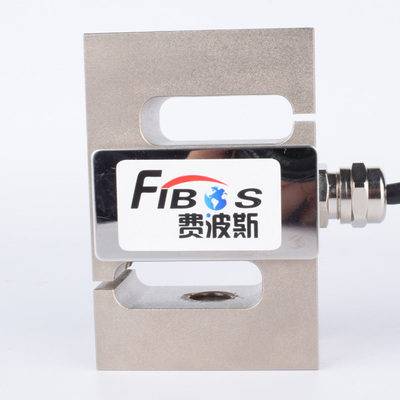

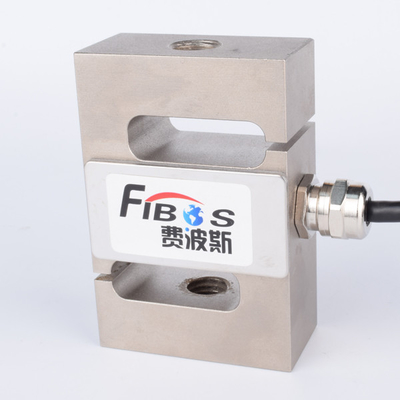

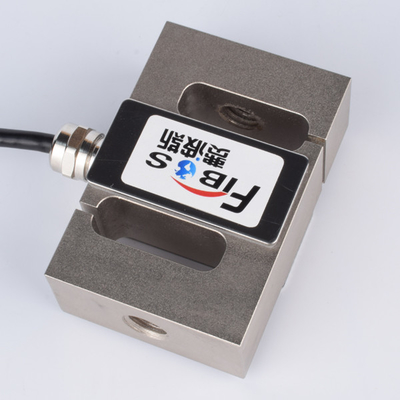

25-500kg 0.75-10t Alloy Steel S Beam Load Cell
1. Descriptions
25-500kg 0.75-10t Alloy Steel S Beam Load Cell FA307 is from S Beam Load Cell category of our brand FIBOS FA3-Series, FA307 can be used to measure load ranges from 25kg up to 500kg and ranges from 0.75t up to 10t capacity, its Non-linearity,Hysteresis and Repeatability all ≤0.03%F.S., its Creep(30min) ≤0.024%F.S..
2. Specifications
| Product name | S Beam Load Cell |
| Capacity | 25,50,100,200,250,500kg / 0.75,1,1.5,2,2.5,5,10t |
| Rated output | 2.0/3.0±1%mV/V |
| Zero Balance | ±0.03mV/V |
| Creep(30min) | ≤0.024%F.S. |
| Non-linearity | ≤0.03%F.S. |
| Hysteresis | ≤0.03%F.S. |
| Repeatability | ≤0.03%F.S. |
| Input impedance | 385±10Ω |
| Output impedance | 350±5Ω |
| Temp.effect on output | 0.05%F.S./10 ℃ |
| Temp.effect on zero | 0.05%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~15V |
| Maximum excitation | 20V |
| Compensated Temp Range | -10~40 ℃ |
| Operating Temp Range | -30~70 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | ⌀5x3000mm |
| Weight | - |
| Material | Alloy steel |
3. Dimension
4. Application
25-500kg 0.75-10t Alloy Steel S Beam Load Cell FA307 can be used for crane scales.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
