Product Details:
|
| Product Name: | Column Type Load Cell | Capacity: | 3000N Or Customized |
|---|---|---|---|
| Non-linearity: | 0.025%F.S. Or Customized | Repeatability: | 0.025%F.S. Or Customized |
| Cable Size: | ⌀4x2000mm Or Customized | Material: | Stainless Steel Or Customized |
| High Light: | 5v Column Type Load Cell,0.025% Column Type Load Cell,3000n weight measuring sensor |
||

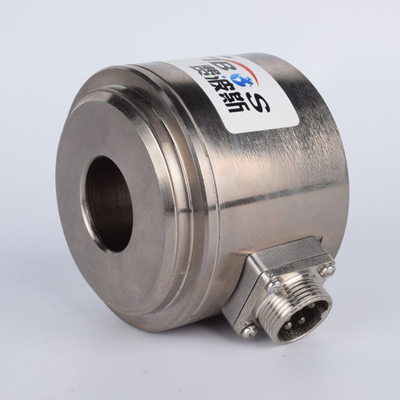

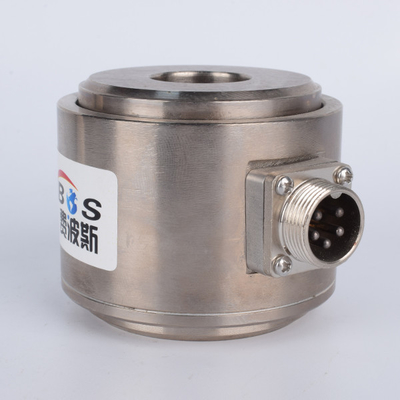

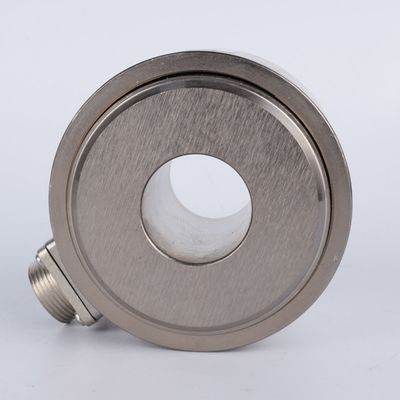

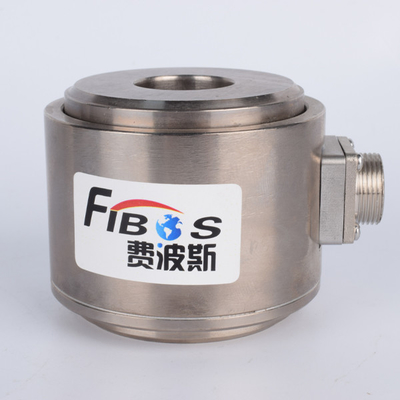

3000N Or Customized Column Type Load Cell
1. Descriptions
3000N Or Customized Column Type Load Cell FA415 is a model of Column Type Load Cell, it belongs to our brand FIBOS FA4-Series, FA415 can measure 3000N or customized capacity, its Non-linearity and Repeatability both are 0.025%F.S. or customized, its cable size is ⌀4x2000mm or customized length, and its IP Class is IP65 or it also could be customized.
2. Specifications
| Product name | Column Type Load Cell |
| Capacity | 3000N or customized |
| Rated output | 2.0±10%mV/V |
| Zero Balance | ±1%mV/V |
| Non-linearity | 0.025%F.S. or customized |
| Repeatability | 0.025%F.S. or customized |
| Recommended excitation | 5~12V |
| Maximum excitation | 15V |
| Compensated Temp Range | -10~60 ℃ |
| Operating Temp Range | -30~70 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | ⌀4x2000mm or customized |
| Material | Stainless Steel or customized |
| IP Class | IP65 or customized |
3. Dimension
Need to be customized
4. Application
3000N Or Customized Column Type Load Cell is mainly suitable for electronic equipment weighing.
5.FAQ
Q1: What is your terms of delivery?
A: EXW, FOB, CFR and CIF.
Q2: Can you produce according to the samples?
A: Yes, we can produce according to your samples or technical drawings.
Q3:What is your sample policy?
A: We can supply the sample with discount if we have ready parts in stock, and customers pay the courier cost.
Q4: What's your quality guarantee policy?
A: Quality guarantee: 12 months.
If the product has quality problem within 12 months, please return it to us, we will repair it, if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted.
And you will pay the shipping cost of returning to us, we will pay the shipping cost of delivering to you.
