Product Details:
|
| Category: | Multi-axis Sensors | Capacity: | X:50/100/200/300/500; Y:50/100/200/300/500; Z:50/100/200/300/500/1000 |
|---|---|---|---|
| Rated Output: | ≈1.0mV/V | Material: | Alloy Steel |
| Protection Class: | IP66 | ||
| High Light: | Multi Component Triaxial Load Cell,Alloy Steel Triaxial Load Cell |
||
Features

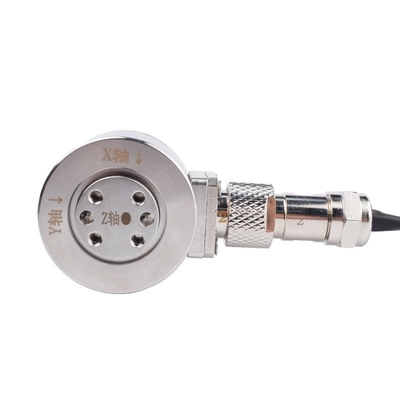

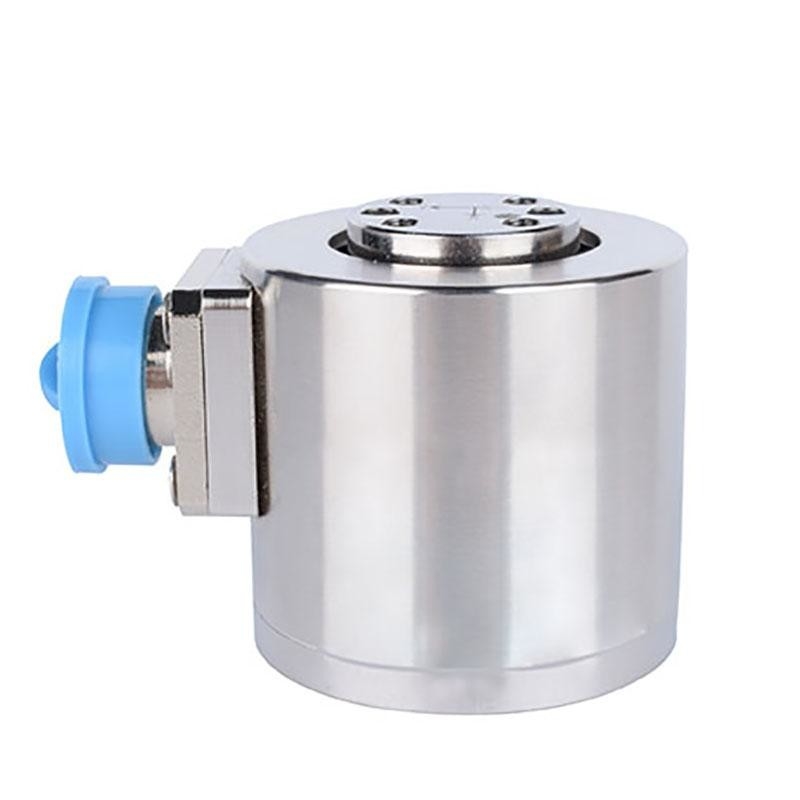

Triaxial load cell Multi-component transducer FA703 supports both tension and compression force measurement in each axis. The 3-axis force sensor is equipped with multiple strain gauge bridges. Up to 3 forces (tension and compression) can be measured simultaneously through the multi-component transducer.
Applications
Mounting Dimension
Load Direction
Wiring Code
Specifications
| Specifications | Technique |
| Capacity(N) | X:50/100/200/300/500;Y:50/100/200/300/500;Z:50/100/200/300/500/1000 |
| Rated output | ≈1.0mV/V |
| Zero balance | ±2%F.S. |
| Non-linearity | 0.3%F.S. |
| Hysteresis | 0.2%F.S. |
| Repeatability | 0.2%F.S. |
| Interference error | 0.5%F.S. |
| Temp.effect on output | 0.1%F.S./10℃ |
| Temp.effect on zero | 0.1%F.S./10℃ |
| Input impedance | 350±10Ω |
| Output impedance | 350±10Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5~12V |
| Maximum excitation | 15V |
| Compensated temp range | -10~40℃ |
| Operation temp range | -20~75℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 300%F.S. |
| Cable size | Φ5×3000mm |
